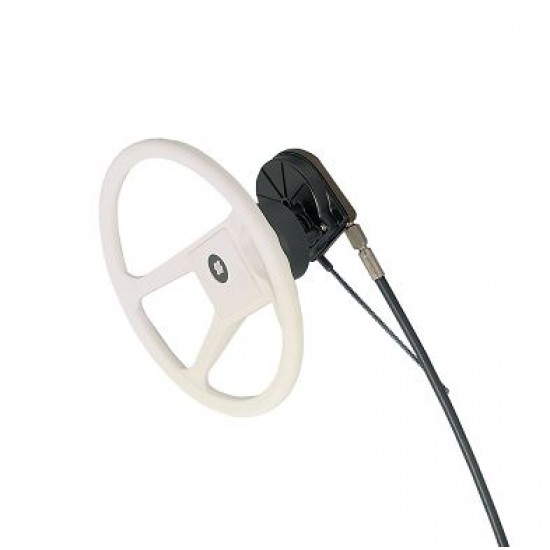

Helm, Ultraflex T67 Helm - *Helm Only*

Ulraflex T67 Steering Helm

Steering helm with friction
T67 - 35809J - Black bezel

FEATURES AND TECHNICAL SPECIFICATIONS:
• All stainless steel output end of cable as per ABYC P17 safety standards
• Corrosion resistant materials
• Standard friction externally adjustable
• 90° bezel
• Four optional helm positions to facilitate steering cable installation
• Lock-to-lock steering wheel turns: approx. 2,5
• Stroke: 230 mm (9”)
• Maximum allowable steering wheel diameter: 380 mm (15”)
• Minimum steering cable bend radius: 200 mm (7,9”)
• Available in package with ROTECH-IV
• Exceeds EN 29775 safety standards
• APPLICATIONS: for use with outboard engines up to 40 kW (55 hp) with the exception of EVINRUDE E-TEC™ 50 for which the use of T85 or T71FC is recommended.

A complete steering system consists of: (please note these items are sold separately)

• Steering cable: M58 available in one foot increments (Recommended)

• Steering wheel (choice available)

• Engine connection kits
