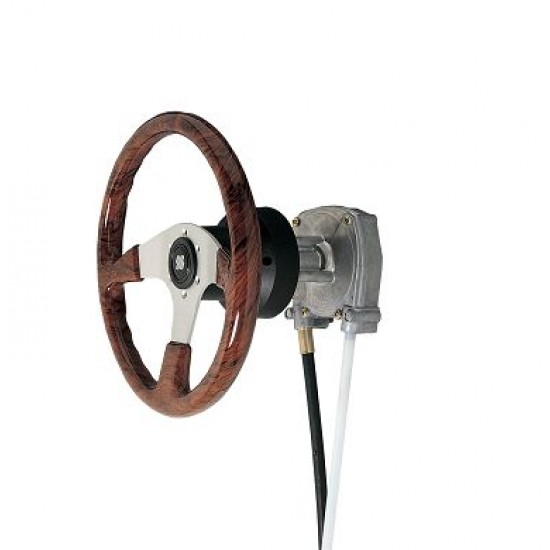

Helm, Ultraflex T71 FC Helm - *Helm Only*

Ultraflex marine steering helm

Steering helm: T71FC - 38867H - single cable steering helm

FEATURES AND TECHNICAL SPECIFICATIONS:
• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Particulary suitable where clearance is limited
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter: 406 mm (16”)
• Minimum steering cable bend radius: 200 mm (7.9”)
• Minimal feedback
• Compact for mounting
• T71FC and T72FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph Ultraflex hydraulic steering systems are recommended
• T71FC steering system is also available in package with ROTECH-I
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

A complete steering system consists of: (please note these items are sold separately)

• Mounting bezel: X34 - 36654B - black, 90° mounting

• Steering cable: M66

• Steering wheel

• Engine connection kits
