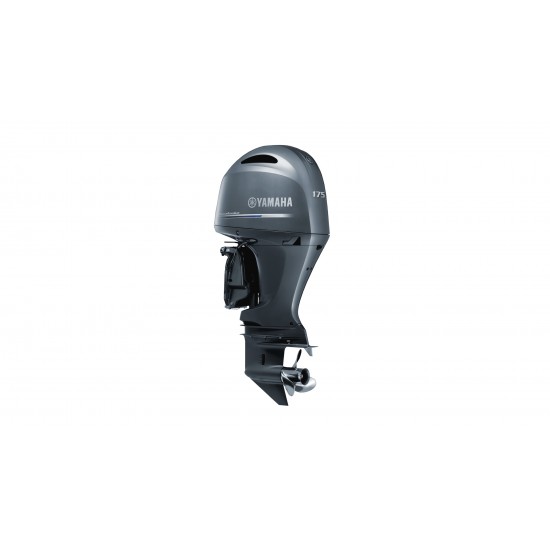

Yamaha 175HP F175AETX, Extra Long Shaft, Remote Control, Electric Start, Power Trim & Tilt

**PLEASE CONTACT US ON 066 7124524 FOR ENGINE ORDERS & AVAILABILITY INFORMATION**

Yamaha 175HP Four Stroke, Remote Control, Electric Start, Power Trim & Tilt, 225kg

Two great ways to enjoy Straight-Four performance

For exceptional power and acceleration, these clean, quiet, smooth, EFI-equipped engines are pretty tough to beat. Add economy, reliability and all-round performance - and you have the perfect choice.

Yamaha’s unique, fuel-efficient EFI system, micro-processor ECU, Variable Camshaft Timing (F200), clean-burn technology and noise reduction systems work seamlessly together - and the sophisticated diagnostic system shows engine and performance data via computer link, so maintenance is quick and simple.

Like all our EFI engines, the F200 and F175 can be linked to Yamaha's exclusive network system, which means you can choose from our wide range of digital gauges and instruments.

Engine Specifications
Engine type: 4-stroke
Displacement: 2785 cm³
No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
Bore x stroke: 96.0 mm x 96.2 mm
Prop shaft output at mid range: 128.7kW / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Starter system: Electric with prime start™
Gear ratio: 1.86 (26/14)

Dimensions
Recommended boat transom height: X: 643mm
Weight with propeller: F175AETX: 225 kg
Fuel tank capacity: N/A
Oil pan capacity: 4.5 litres

Additional features
Control: Remote control
Trim & tilt method: Power trim & tilt
Lighting Coil / Alternator: 12V - 50A with rectifier/regulator
Tilt limitter: Optional
Engine immobiliser: YCOP Optional
Propeller: Optional
Counter Rotation Model: N/A
Shallow Water Drive: Standard
Digital Network Gauge II (LCD Color): N/A
Digital Network Gauge (Round/Square): Optional
Variable Trolling RPM: With DN Gauges orm-f tiller handle
Dual Battery Charging System: Optional
Shift Dampener System (SDS): Optional

Due to size and weight, we are unable to ship engines free of charge, freight charges apply and vary depending on engine size, please contact us for delivery costs
